NP-Lite
The Worlds First Handheld Nano/Picoliter Microdroplet Dispensing Unit
Picoliter Precision, Now within our hands
-

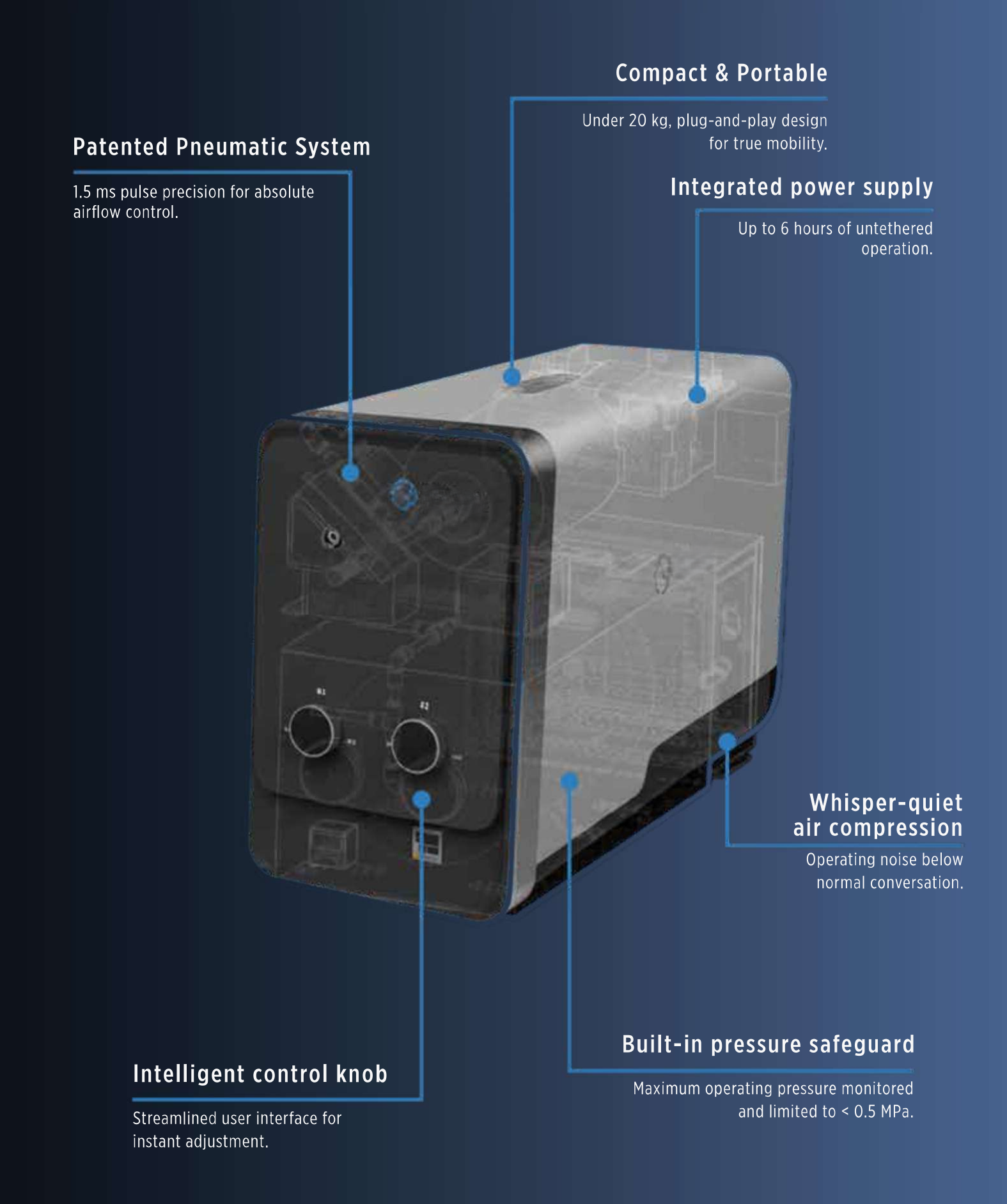

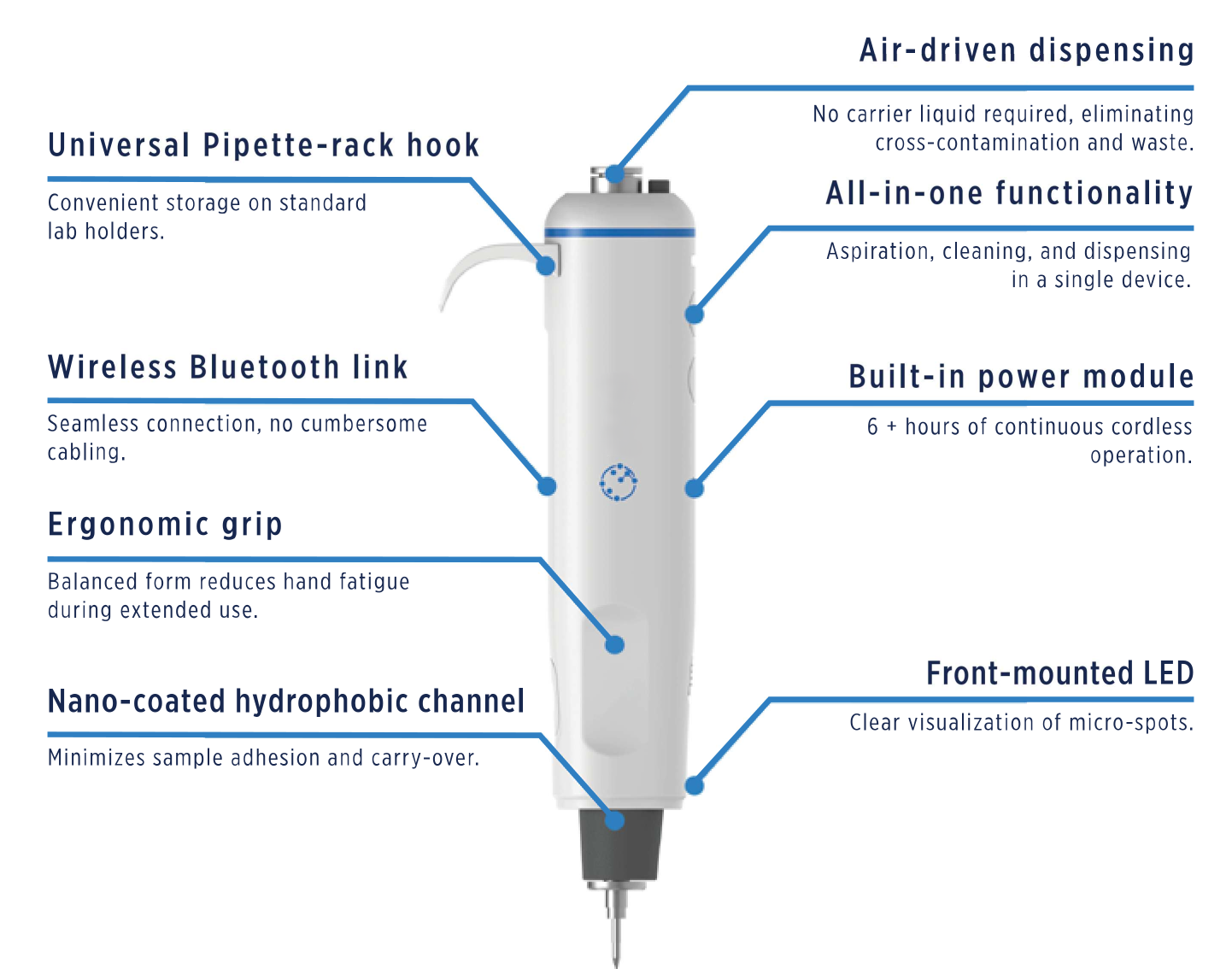

Handheld Concept: Precision You Can Hold MP-Lite brings microdroplet dispensing to your hand.
Weighing under 20kgs, it frees researchers from platform limits.
Portable precise, and effortless -
Pneumatic System: Air Driven Accuracy A patented pneumatic micro-valve ejects droplets by air pulse. No carrier fluids, no mechanical push. Zero cross contamination with minimal residue (<20 nL).
-
Minimal Interaction: Intuitive Control, Scientific Precision Smart knob and OLED Display for clear, direct operation
No complex settings, precision as natural as writing
Specifications: (Design)
| Item | Specification | Unit |
|---|---|---|
| Operating temperature range | 2–40 | °C |
| Operating humidity range | 0–80 (non-condensing) | %RH |
| Recommended liquid viscosity range (Note 1) | 0.8–60 | mPa·s |
| Extended liquid viscosity upper limit (Note 1) | ≤200 | mPa·s |
| Recommended liquid temperature range (Note 1) | 4–50 | °C |
| Maximum working pressure of pressure chamber | 0.45 | MPa |
| Minimum pneumatic pulse width | 1.5 | ms |
| Maximum operating noise level (Note 2) | 53 | dB (A) |
| Controllable droplet volume range (Note 1) | 400 pL–20 nL | — |
| Nozzle material options | Resin/Ceramic/Metal | — |
| Nozzle diameter options | 25/30/40/50/100/Custom | µm |
| Nozzle diameter tolerance | ±5 | µm |
| Protection rating | IP20 (Indoor laboratory environment) | — |
| Safety & compliance | IEC 61010 / CE EMC / RoHS | — |
Highlights:
Patented pneumatic micro-valve system
400pL-20nL adjustable droplet range
Ultra-Low Dead Volume
Zero Cross-Contamination
Multi-Fluid Compatibility
Whisper-quiet Operation
400pL-20nL adjustable droplet range
Ultra-Low Dead Volume
Zero Cross-Contamination
Multi-Fluid Compatibility
Whisper-quiet Operation
